Cold Storage Warehouse Operation

●Facility Overview

• –30°C F-Class Automated High-Rise Warehouse / +10°C Anteroom
• ±0°C C-Class Automated High-Rise Warehouse

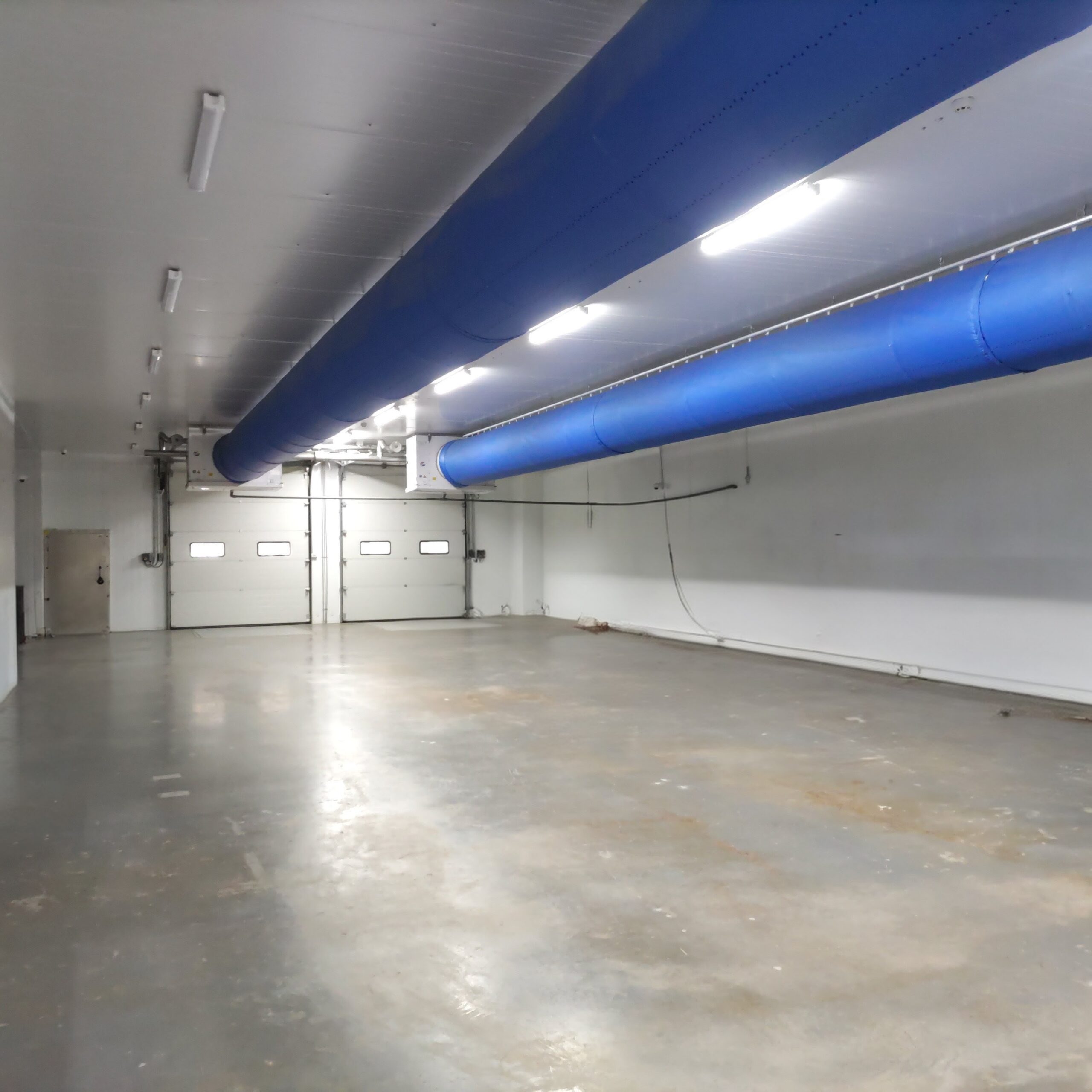

• +10°C 1F Dispatch Area / +10°C B1F Receiving Area
• ±0°C C-Class Temporary Storage Rooms × 4
• –25°C F-Class Temporary Storage Rooms × 4
• IQF Freezer × 1

●Installed Equipment

F-Class NiCRES System

• HNU-VZM28AFL × 1
• RPU-650/3000 × 1
  C-Class NiCRES System
• HNU-VEM18AFL × 1
• RPU-600/3000 × 1

Brine Cooler Unit

• HBU-VKL12BDL × 1
  Condensing Units
• HCU-VKM18BDL × 1
• HCU-VZM26BDL × 1

●Company Introduction

Based at Muara Baru Fishing Port in North Jakarta, Indonesia, this leading seafood processing company specializes primarily in frozen tuna.
Equipped with high-performance freezing facilities, the company handles the freezing and processing of tuna, swordfish, and other seafood products, supplying both domestic and international export markets with consistent, high-quality standards.

The facility is a commercial cold storage installation located adjacent to Soekarno–Hatta International Airport in Indonesia.

The client selected Japan’s advanced NH₃/CO₂ cascade refrigeration system, adopting the NiCRES platform equipped with high-efficiency reciprocating compressors to achieve superior performance and reliability.

NiCRES has been implemented across the –30°C and ±0°C automated high-rise warehouses, as well as the +10°C anteroom and receiving/shipping areas. This configuration significantly reduces environmental impact while minimizing ammonia charge, delivering a highly safe and efficient refrigeration system.

The facility includes eight F-Class and C-Class processing and storage rooms, along with a fully equipped IQF freezer system.

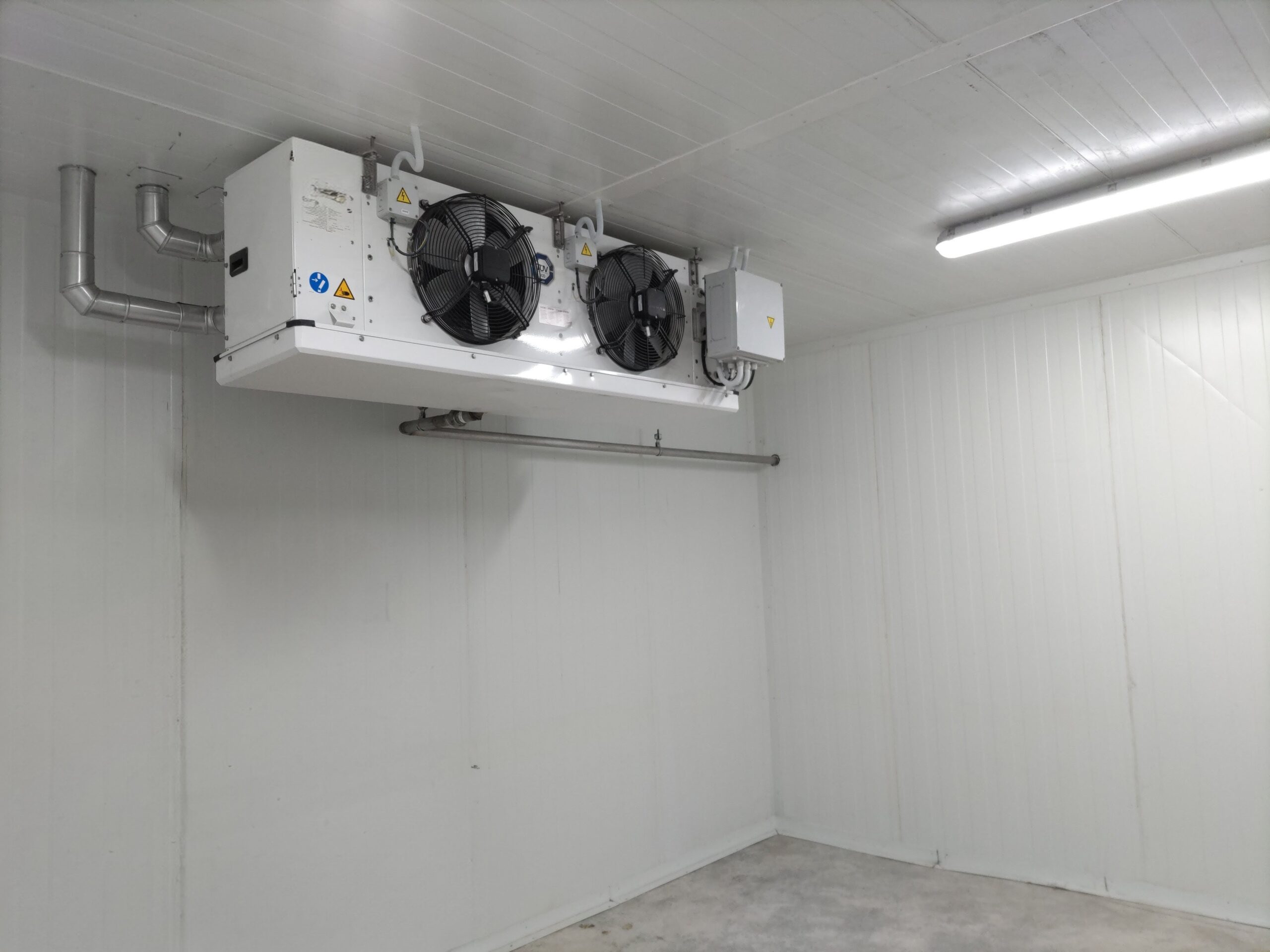

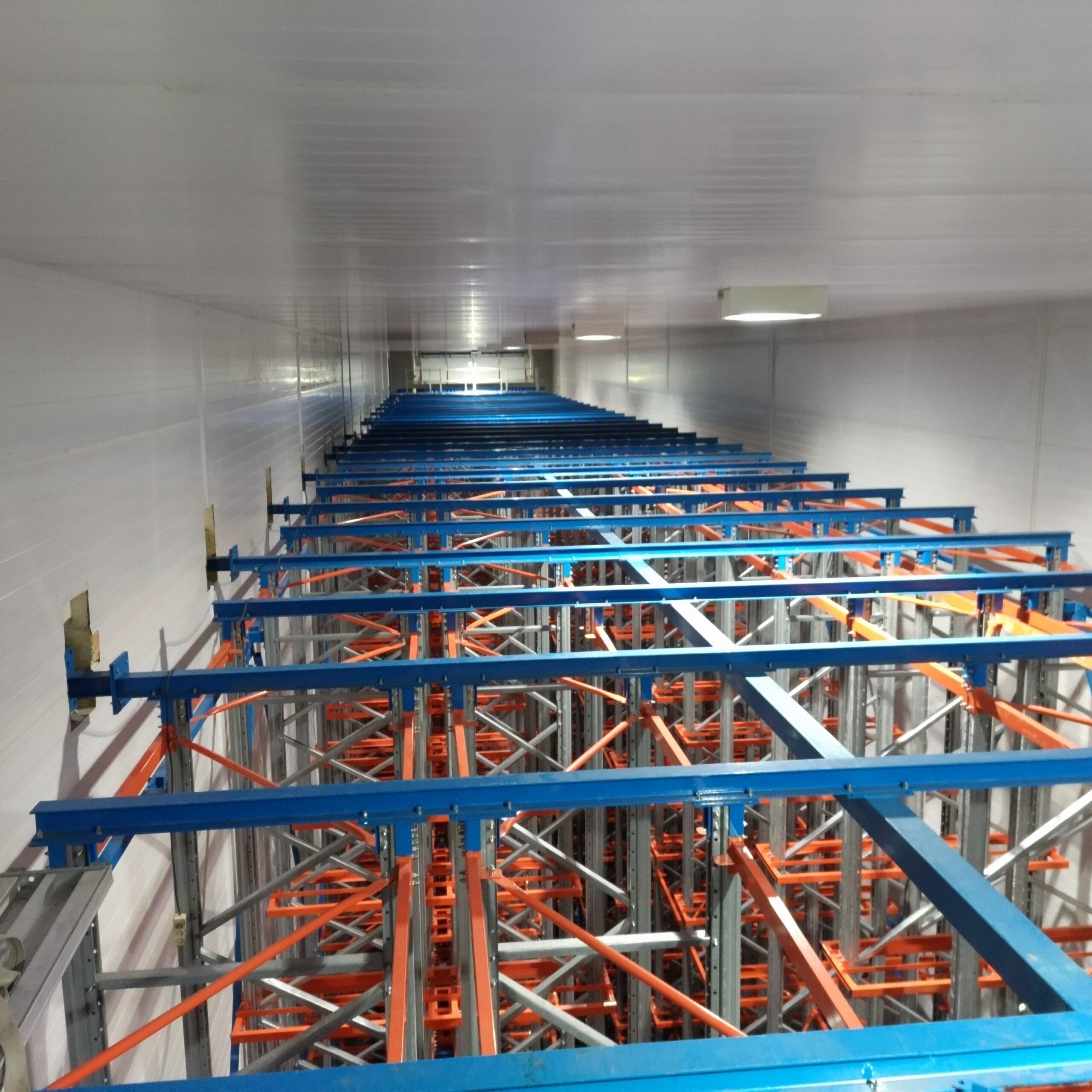

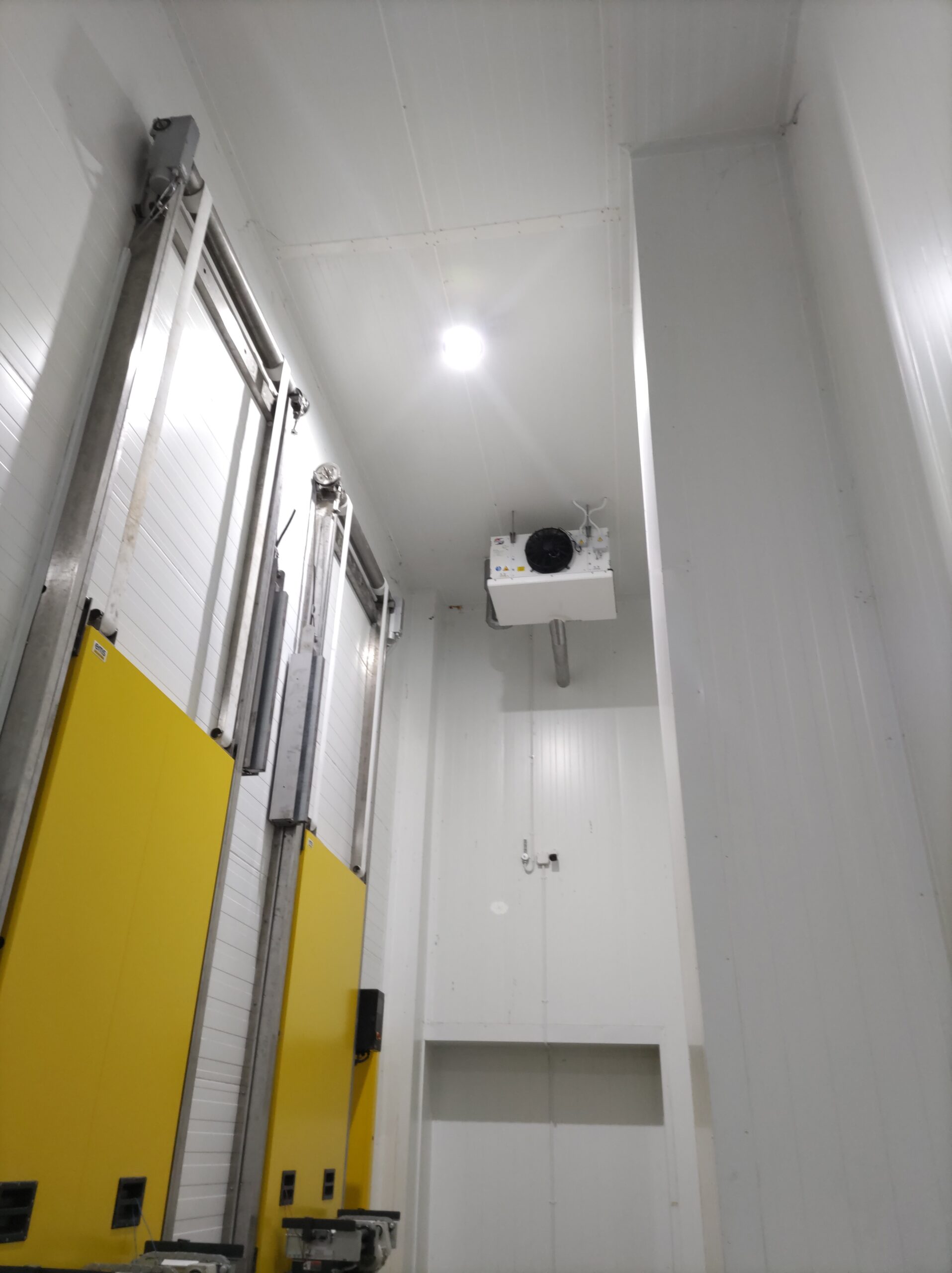

The automated warehouse utilizes a bottom-blow air distribution method, promoting near-natural air circulation to enhance cooling efficiency. F-Class temporary storage rooms are equipped with high-performance aluminum ceiling coil units, maximizing heat exchange efficiency.

This design improves operational energy efficiency while preventing product drying, discoloration, and freezer burn—ensuring optimal freshness preservation.

By combining high product quality standards with enhanced safety and energy savings, we deliver refrigeration solutions precisely aligned with our customer’s operational needs.

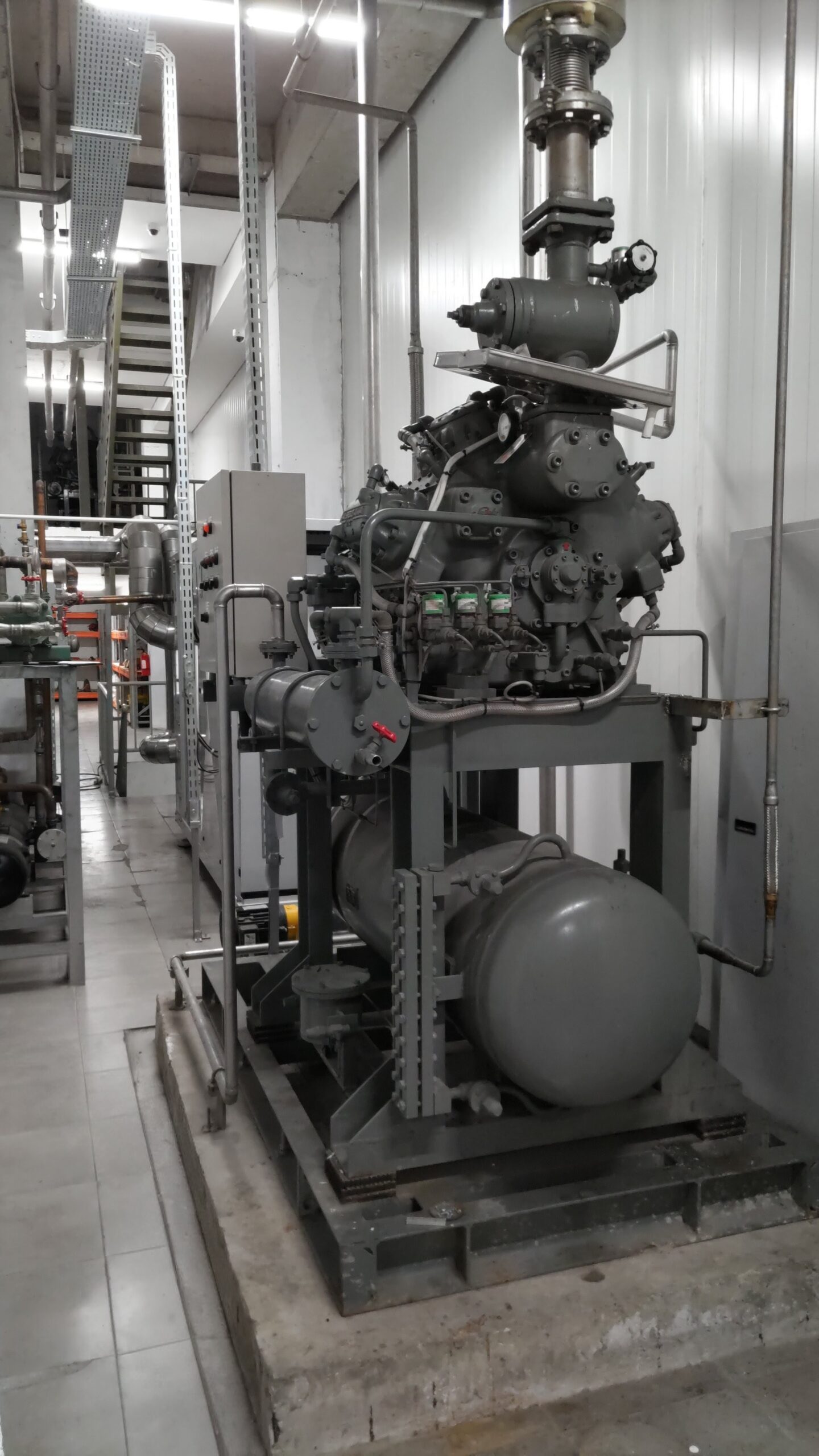

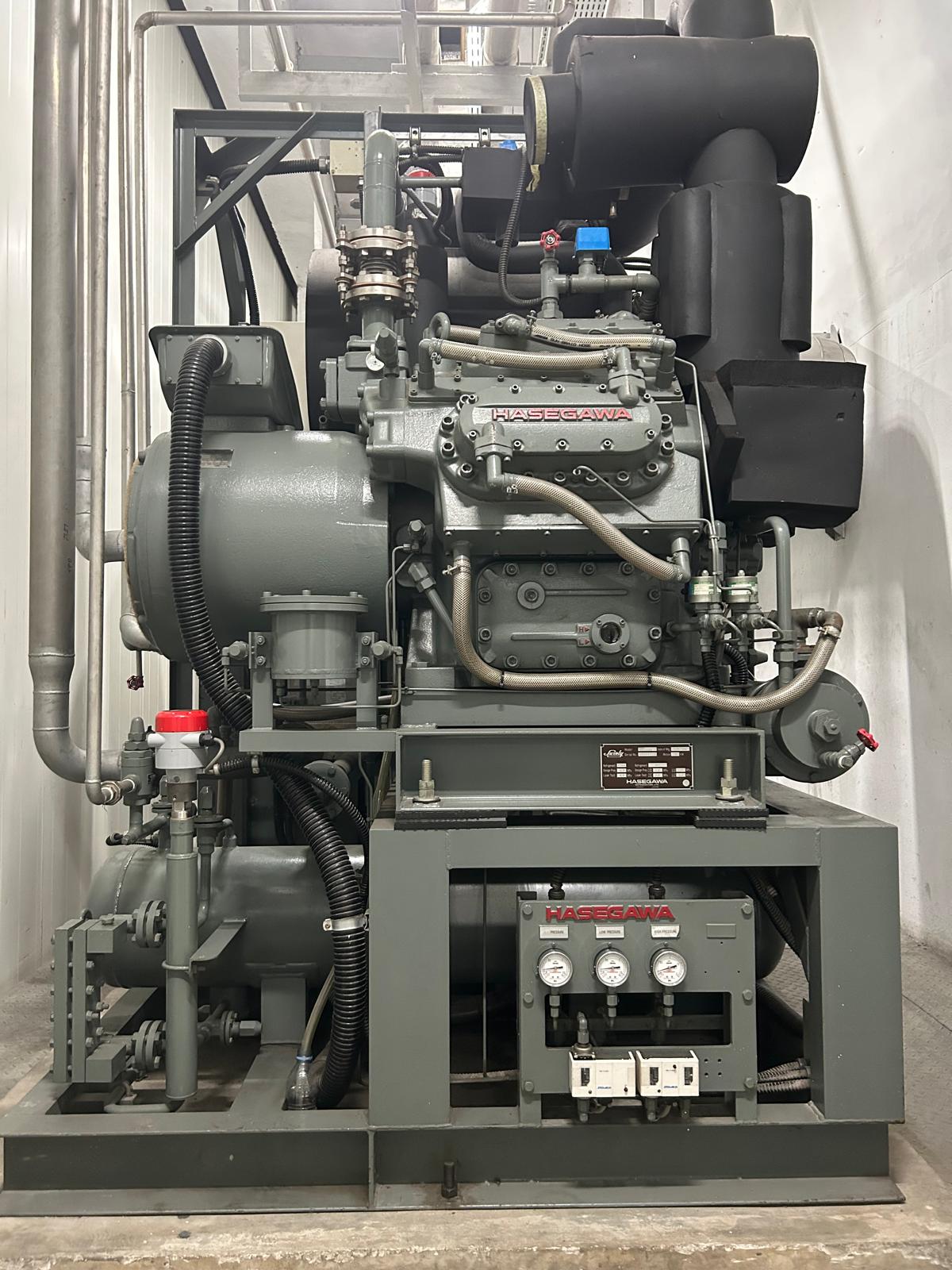

NiCRES　Ammonia Compressor Unit
