HASEGAWA REFRIGERATION, LTD.

LINE UP OF HRL'S PRODUCTS

HRL's products are making a great contribution in the refrigeration industry with their excellent quality and high reliability.

WORLD TOP BRAND, HRL'S COMPRESSOR UNITS (HVU-series)

NEW GREE DESIGN CONCEPT (♦USE OF AMMONIA REFRIGERANT ♦ENERGY SAVING ♦SPACE SAVING)

ACHIEVEMENTS BASED ON OUR LONG-ESTABLISHED TRADITION AND EXPERIENCE

HRL compressors, products of our long experience as a manufacturer specializing in the refrigeration plants and machinery, enable to reduce total running cost and to satisfy user needs.
Our compressors, like those for fishing boats, which require durability due to their sever operating conditions, have gained users' confidence, and achieved a dominant market share in the world.

WIDE RANGE OF MODELS ARE AVAILABLE

Followed by the Flange motor types, the selection of models has expanded further in order to tailor every kind of applications and specifications of users.

SUPERIOR QUALITY AND PERFORMANCE SUPPORTED BY HIGH TECHNOLOGICAL COMPETENCE

HRL's compressors are designed to serve wide range of temperature and to perform with high degree of efficiency.
The design focusing on "efficiency", supported by the carefully selected materials and strict quality controls, brings outstanding durability and high performance of the compressors.
The oil pumps, as the standard component, are able to maintain required oil pressure by stabilizing it even in the ultracold environment.
The Flange motor types assure the superior durability and highly efficient operation by their structure that HRL's proud squirrel-cage motors and compressors are combined.

UTSTANDING ENEGY EFFICIENT DESIGN

Ultra-light weight pistons and rods, and the well-designed valve structure generate excellent performance and energy-efficient operation.
As the discharged refrigerant is cooled well enough by its cooling mechanism, efficient running is maintained at all times.
The inventive anti-oil-loss mechanism minimizes oil consumption, which determines the performance of evaporators.
The motors of Flange motor types run effectively with superb air cooling system which minimizes the heat in the system.
Hydraulic capacity control system, as a standard fixture enables to reduce staring torque and to control compressor's capacity responding to the load change.
Furthermore, in recent years, the use of inverters enhances the efficiency of the compressors further as well as to reduce the starting currents.

SIGNIFICANT REDUCTION IN MAINTENANCE COST

For easier and quicker repair and maintenance, the structure of our compressor is very simple.
Spare parts made to last reduces maintenance cost.
The Flange motor types, the motors of those are directly installed on the shaft, require no centre aligning for couplings.
Standardizing common spare parts, making them interchangeable, and HRL's SCM (Supply Chain Management) ensure reliable spare parts supply for our users.

SPACE-SAVING DESIGN

The Flange motor types have no coupling device, which frees a lot of space.(Flange motor types are the general term for the motor combined compressors)

COMPRESSOR UNITS (HVU-SERIES)

HVU series/Compressor Units
The world top brand, HRL's Compressor: Model VZM/VZL & VKM/VKL
<While the sister products of VM/VML models are no longer in production, their spare parts are continuously supplied. Please contact us.>

The HVU-series VZM/VZL is the high power compressor to serve ultra-cold use.

♦ VZL28RF: Higher capacity than VZM28RF to meet the requirements of fishing boats and ultra-cold use.
♦ VZL28RF: 124% more capacity compare with VZM28RF
♦ VZL28RF: Sharing spare parts compatible to VZM28RF
♦ The top class high-power compressor enables to reduce numbers of machines required on board.
♦ Replacing four VZM28RF by three VZL28RF reduces 1750 kg of weight.

COMPRESSOR UNITS (HVU-SERIES)

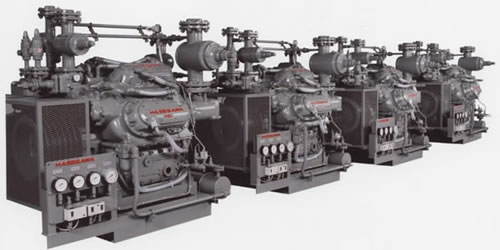

MODEL VZM	VZM Model (Bore 132mm x stroke 106mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VZM16, VZM18 Double Staged: VZM26, VZM28 <A Flanged Motor type. Direct Coupling and V-belt type are also available>
MODEL VZL	VZL Model (Bore 132mm x stroke 132mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VZL14, VZL18 Double Staged: VZL24, VZL28 <A Flanged Motor type. Direct Coupling and V-belt type are also available>

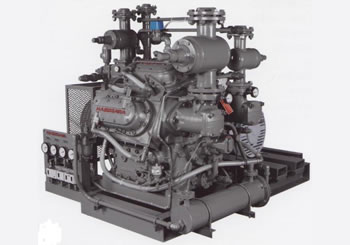

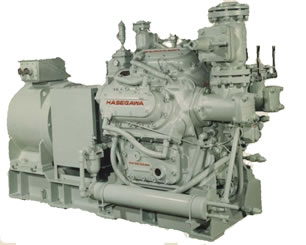

MODEL VZM VZL	VZM Model (Bore 132mm x stroke 106mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VZM16, VZM18 Double Staged: VZM26, VZM28 VZL Model (Bore 132mm x stroke 132mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VZL14, VZL18 Double Staged: VZL24, VZL28 <A Direct Coupling type>
MODEL VZM VZL	VZM Model (Bore 132mm x stroke 106mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VZM16, VZM18 Double Staged: VZM26, VZM28 VZL Model (Bore 132mm x stroke 132mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VZL14, VZL18 Double Staged: VZL24, VZL28 <A V-belt type>

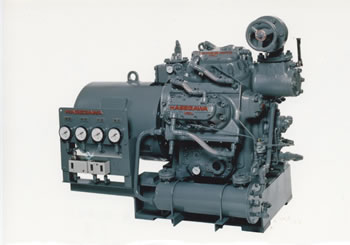

MODEL VKM VKL	VKM Model (Bore 85mm x stroke 70mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VKM14, VKM16, VKM18 Double Staged: VKM24, VKM26, VKM28 VKL Model (Bore 85mm x stroke 85mm) Refrigerant: R717, R404, R417 Style: Reciprocation Single Staged: VKL14, VKL16, VKL18 Double Staged: VKL24, VKL26, VKL28 <A Flanged Motor type>
